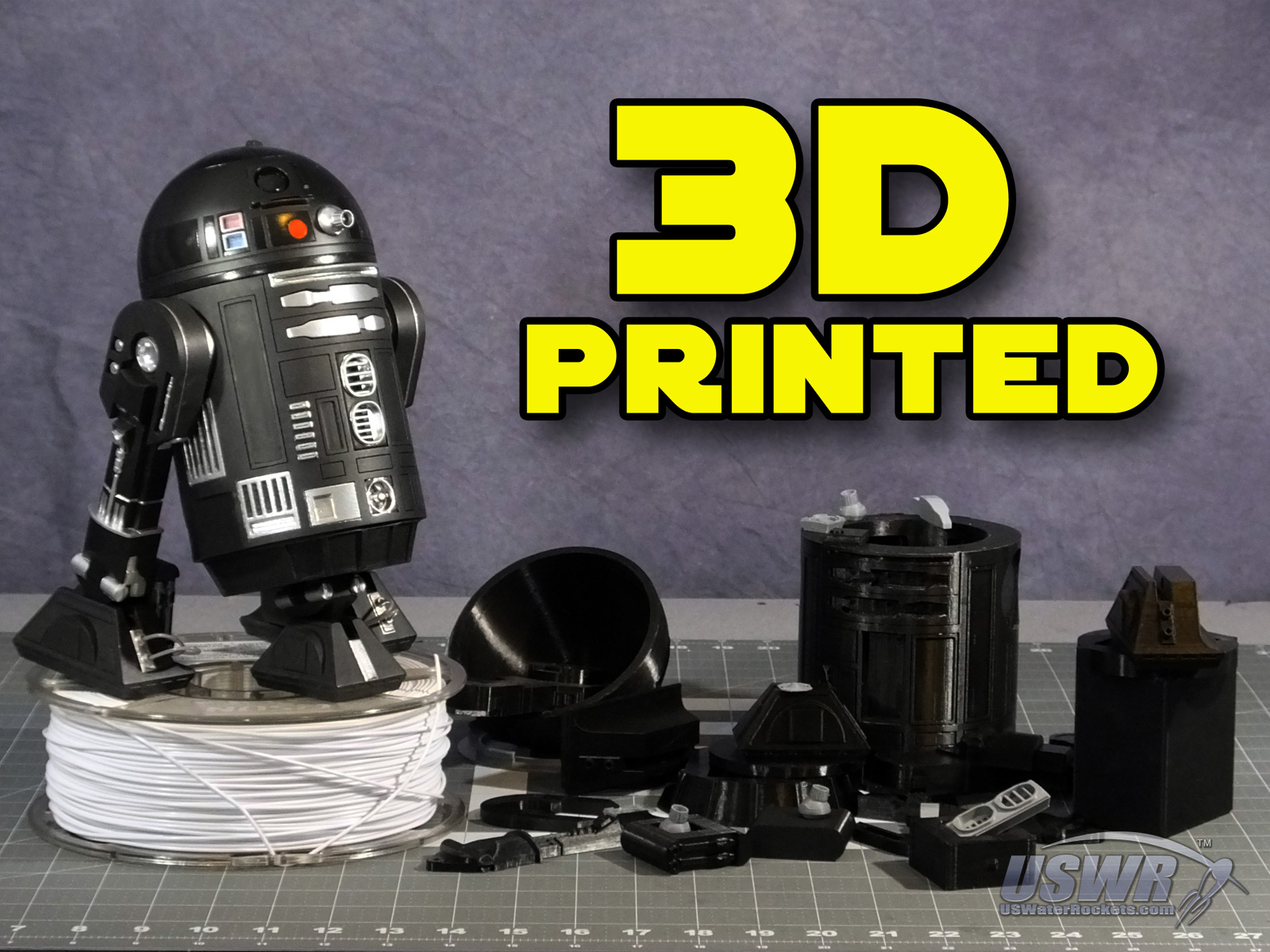

3D Printed Star Wars Droid Replica

Introduction:

U.S. Water Rockets is proud to release this nearly ¼ Scale accurate droid replica for 3D printing. This replica robot from the Star Wars Universe was designed to be the most detailed and accurate 3D Printable Astromech droid you can print, with exceptional detail lacking in other printable models. This project was inspired by some of the replica prop builds done by Adam Savage, featured on Tested.com and YouTube. The design was created completely from scratch, using reference stills from the movies and drawings available online produced by the R2 Builders Club (astromech.net). The design and build took place over the course of several months as a learning project to explore the limits of FDM 3D printing, and learn how to break down a complex design in order to print it with greater fidelity. A side benefit of this process is that it enables a much larger print to come from a small 3D printer. The downloadable files for the components needed to assemble this droid are avaialable on our Thingiverse page. www.thingiverse.com/thing:2290050 You will need to download and then print out the following printable components in the table below. These parts were created to fit in the 120x120x120mm print volume of the Monoprice Select Mini V2 and V1 3D Printer, but some of the larger parts of the legs will have to be rotated 45 degrees to fit the print bed. If you have trouble getting the parts to slice, you likely have a skirt, brim, or raft enabled, for which you will have to adjust the size of to allow the parts to completely fit within the volume of your printer. Below is the list of components and the quantities you need:

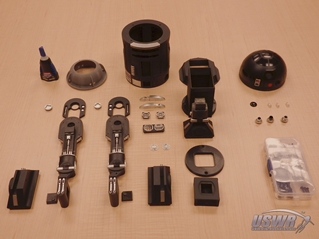

Gallery
PartQuantityPrinting Notes
Torso1Some Support is recommended
Dome1
Skirt1
Neck_Ring1
Center_Retract_Track1
Center_Retract_Top1
Center_Retract_Slider1
Center_Foot1
Center_Leg_Half2
Leg_Outer2Rotate 45 degrees to fit small beds
Shoulder_Hub2
Left_ Leg_ Inner1Rotate 45 degrees to fit small beds
Left _Shoulder1
Left _Foot1
Left_Battery_Box1
Left_Battery_Door1
Right_ Leg_ Inner1Rotate 45 degrees to fit small beds
Right_Shoulder1
Right_Foot1
Right_Battery_Box1
Right_Battery_Door1
HoloProjector3
Center_Vent1
Octagon_Port2
Power_Coupling2
Radar_Eye1
Utility_Arm2

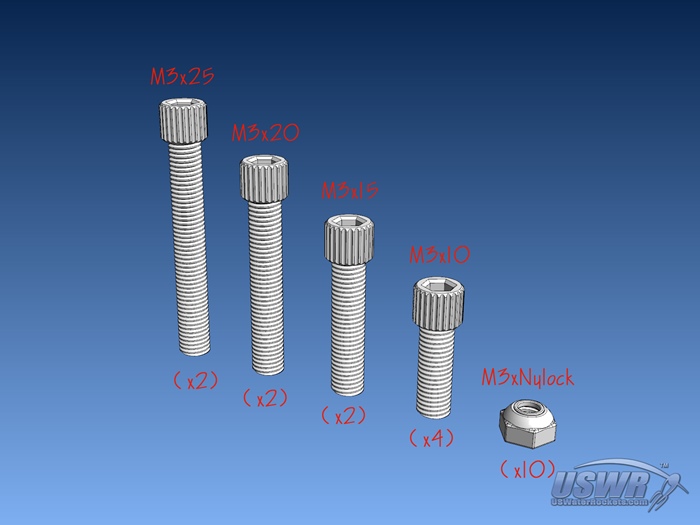

In addition to the printed parts you will need to get a few screws and things to hold the print together. The fasteners used are:
PartQuantityUsed For
M3x25 Socket Cap Screw2Ankle Joints on Feet
M3x20 Socket Cap Screw2Shoulder Pivot Joints
M3x15 Socket Cap Screw2Leg Retract Top Cover
M3x10 Socket Cap Screw4Neck Ring attachments
M3 Nuts (Nylock type preferred)10For the screws above
1.75mm Filament1Used for alignment pins in many glue joints, and as Battery Hoses.

Note: Some of the assembly requires gluing pieces together. Glue appropriate for the type of plastic you have used for your prints will be needed. We suggest a good epoxy or CA Glue. Most of the glue joints in this design use alignment pins which you will cut from scrap 1.75mm filament, so have some extra filament handy.


Astromech Droids are available in a wide variety of colors. If you assemble this replica, feel free to print and paint this design in the color scheme that you like the most. There are many online resources available to help you choose a film accurate look to make this 3D Printed Droid an R2-D2 model, or create your own custom design. We chose to paint ours to look like the C2-B5 from the Rogue One film. Be creative!

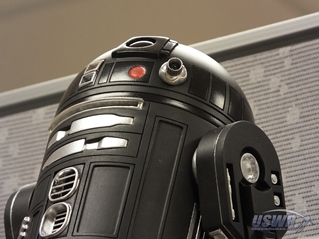

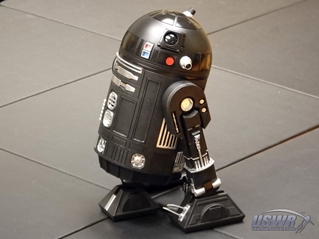

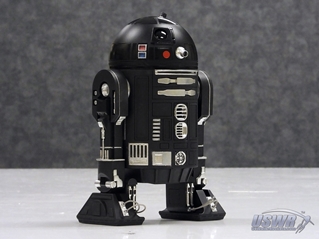

Gallery
[Back to Table of Contents]

Part 1: Left and Right Leg Assemblies

Step 1:

Glue one Leg_Outer to the Left_Leg_Inner, cutting alignment pins from the 1.75mm filament piece and inserting them into the holes on the mating surfaces of the joint for alignment.

Step 2:

Glue the Left _Shoulder to the Left_Leg_Inner. Note that the shoulders have details which are specific to the left and right sides, so do not swap them if you want perfect accuracy of the droid. The Shoulder Button detail should be located toward the front side of the legs. .

Step 3:

Insert an M3 nut through the channel cut in the top of the Left_Foot, and slide the nut into the hexagonal cavity in the foot.

Step 4:

Insert a 25mm M3 Socket Cap Screw into the hole in the Left_Battery_Box, then through the hole in the inboard side of the Left_Foot. Get the screw to begin threading into the M3 Nut inside the foot. Slide the partially assembled Left_Leg into the channel in the top of the Left_Foot, and tighten the screw inside the Left_Battery_Box so it passes through the pivot hole in the bottom of the leg. Tighten the screw until it pulls the Left_Battery_Box tight to the Left_Foot.
Gallery

Step 5:

Snap the Left_Battery_Door over the screw in the Left_Battery_Box. Press hard until it snaps in.

Step 6:

Using spare 1.75,, filament, create the two Battery Hoses that run from the Left_Battery_Box to the Left_Foot. Cut and bend the filament to fit, apply glue and insert into each hole.

Step 7:

The Left Leg is now fully assembled. Repeat steps 1 through 7 for the Right Leg assembly. The completed Right Leg assembly should be a mirror of the Left Leg assembly. [Back to Table of Contents]

Part 2: Assembly of the Center Foot and Retraction Mechanism.

Step 1:

Glue the two Center_Leg_Half parts together, using more cut 1.75mm filament pins for alignment.

Step 2:

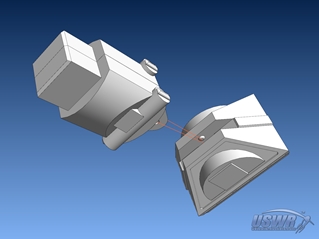

Snap the Center_Foot on the bottom of the assembled Center_Leg. The two bumps on the bottom of the Center_Leg will engage into holes in the sides of the channel on top of the Left_Foot and become a pivoting joint.

Step 3:

Slide the Center_Leg_Slider into the Center_Retract_Track. The side with the cutouts for the Center_Leg faces the rectangular side of the Center_Retract_Track. Work the slider up and down to make sure it slides easily.

Step 4:

Use two M3x10 socket cap screws and M3 nuts to attach the Center_Retract_Top to the Center_Retract_Track..

Step 5:

Glue the Center Leg assembly into the opening in the Center_Retract_Slider. These parts are symmetrical, so don't worry about which side is the front or back.

Step 6:

Glue the Skirt onto the rectangular end of the Center_Retract_Track. [Back to Table of Contents]

Part 3: The Torso:

Step 1:

Glue the two Octagon_Ports to the cutouts in the lower Torso.

Step 2:

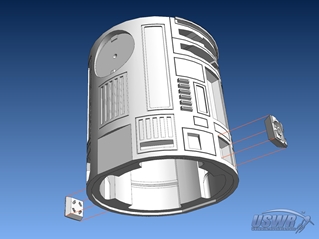

Glue the two Power_Coulplings into the cutouts in the lower Torso.

Step 3:

Glue the two Utility_Arms to the cutouts in the upper front of the Torso, using 1.75mm pins for alignment.

Step 4:

Glue the Center_Vent into the cutout in the front of the Torso. [Back to Table of Contents]

Part 4: The Dome:

Step 1:

Glue the three Holoprojectors into the circular cutouts in the Dome. The projectors can be rotated before the glue sets to produce a desired pointing position.

Step 2:

Glue the Radar_Eye into the cutout in the front of the Dome. [Back to Table of Contents]

Part 5: Final Assembly:

Step 1:

Push four M3 nuts into the hexagonal cutouts under the top lip inside the torso. They should snap in place and be held captive so they don't fall out or need a wrench to tighten.

Step 2:

Use four M3x10 screws to attach the Neck_Ring to the top of the Torso.

Step 3:

Push two M3 nuts into the Hexagonal cutouts inside the Torso at the pivot points where the legs attach on each side.

Step 4:

Use two M3x20 screws to secure the Left and Right Legs to the Torso. Do not overtighten the screws, otherwise the legs will not rotate at the shoulders.

Step 5:

Snap the two Shoulder_Hubs into the holes in the Left and Right shoulders covering the screws holding the legs on. Do not glue the Shoulder_Hubs, so you can remove them later for maintenance on the shoulder screws.

Step 6:

Slide the Center Leg assembly into the bottom of the Torso. The Skirt will snap into the bottom of the Torso at the perimeter. Do not glue this in place if you wish to be able to perform maintenance on the leg retraction slider mechanism.

Step 7:

Push the Dome on top of the Neck_Ring, and it will snap in place. [Back to Table of Contents]

Congratulations! You're done!

Finished Droid Gallery
[Back to Table of Contents]
Creative Commons License 3D Printed Star Wars Droid Replica Tutorial by U.S. Water Rockets is licensed under a Creative Commons Attribution-NonCommercial 3.0 Unported License.
